Characteristic & Function

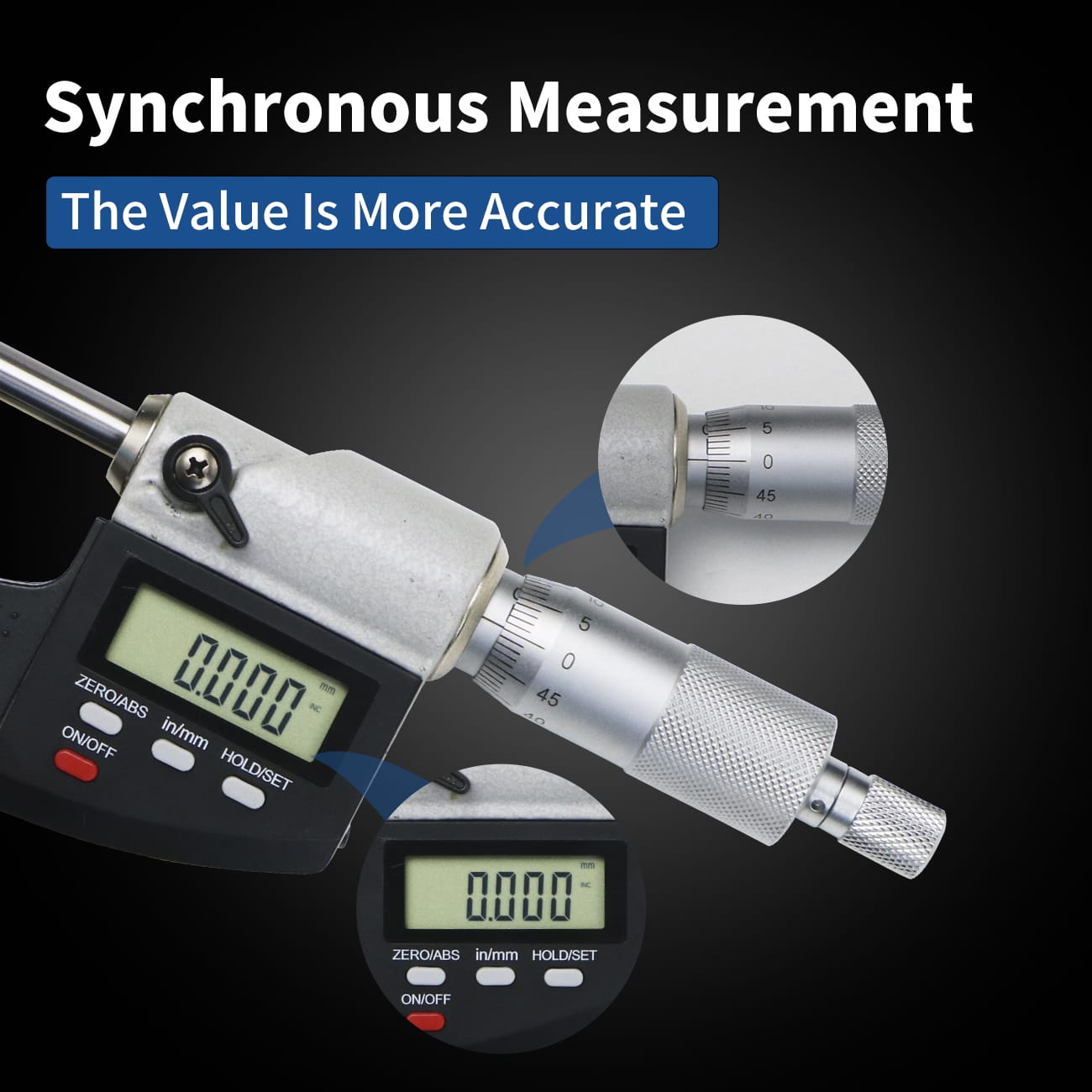

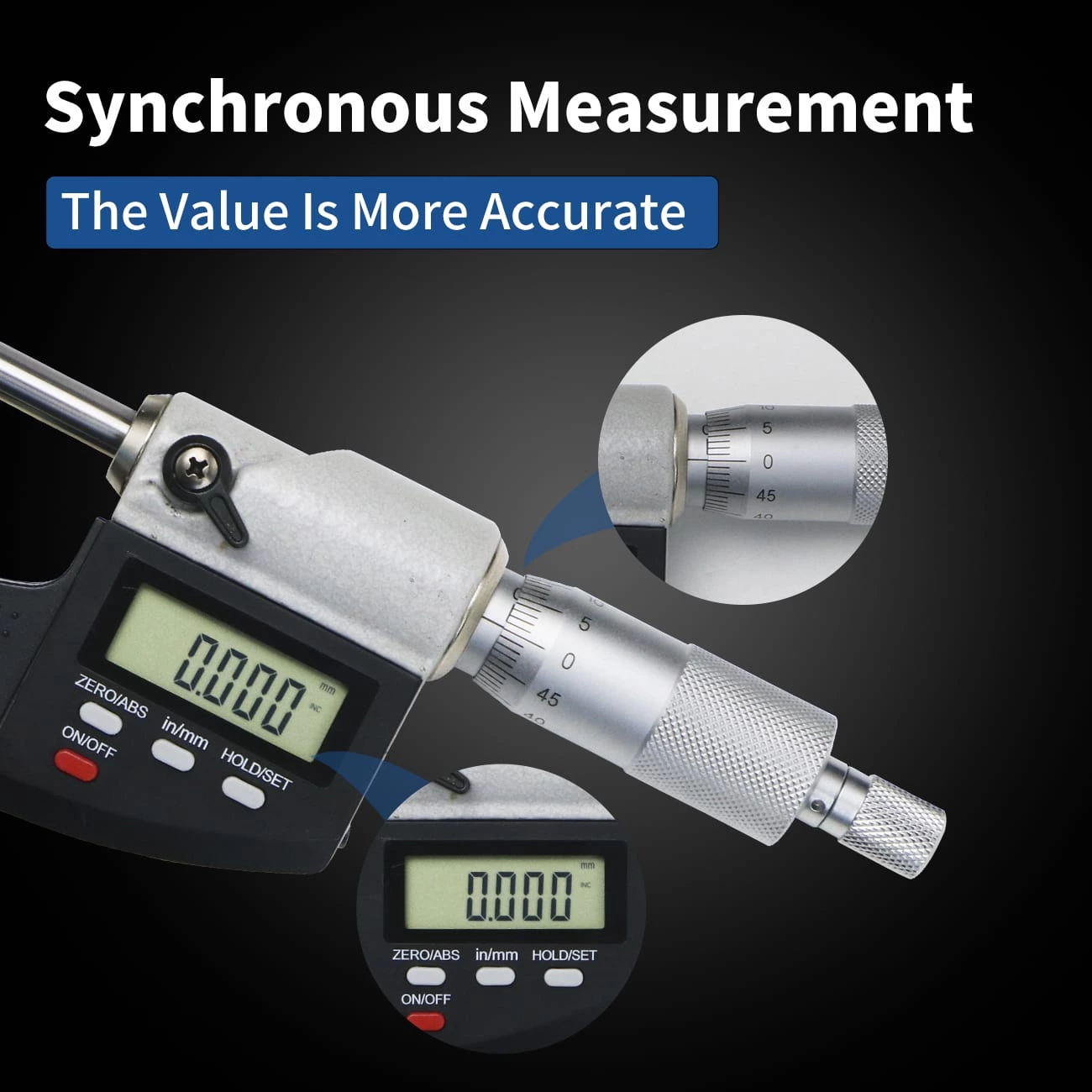

1. Both LCD display and cursor scale line;

2. Durable carbide measuring head;

3. Can used for direct measurement and comparative measurement;

4. Data retention function, convenient to use in occasions where direct reading is not suitable;

5. Automatic power off for non-response within 5 minutes;

6. Service temperature: 0-40℃, service humidity: ≤ 80%;

7. Power supply: CR2032.

Specification



Measuring range : 0-25 mm

Resolution:0.001 mm

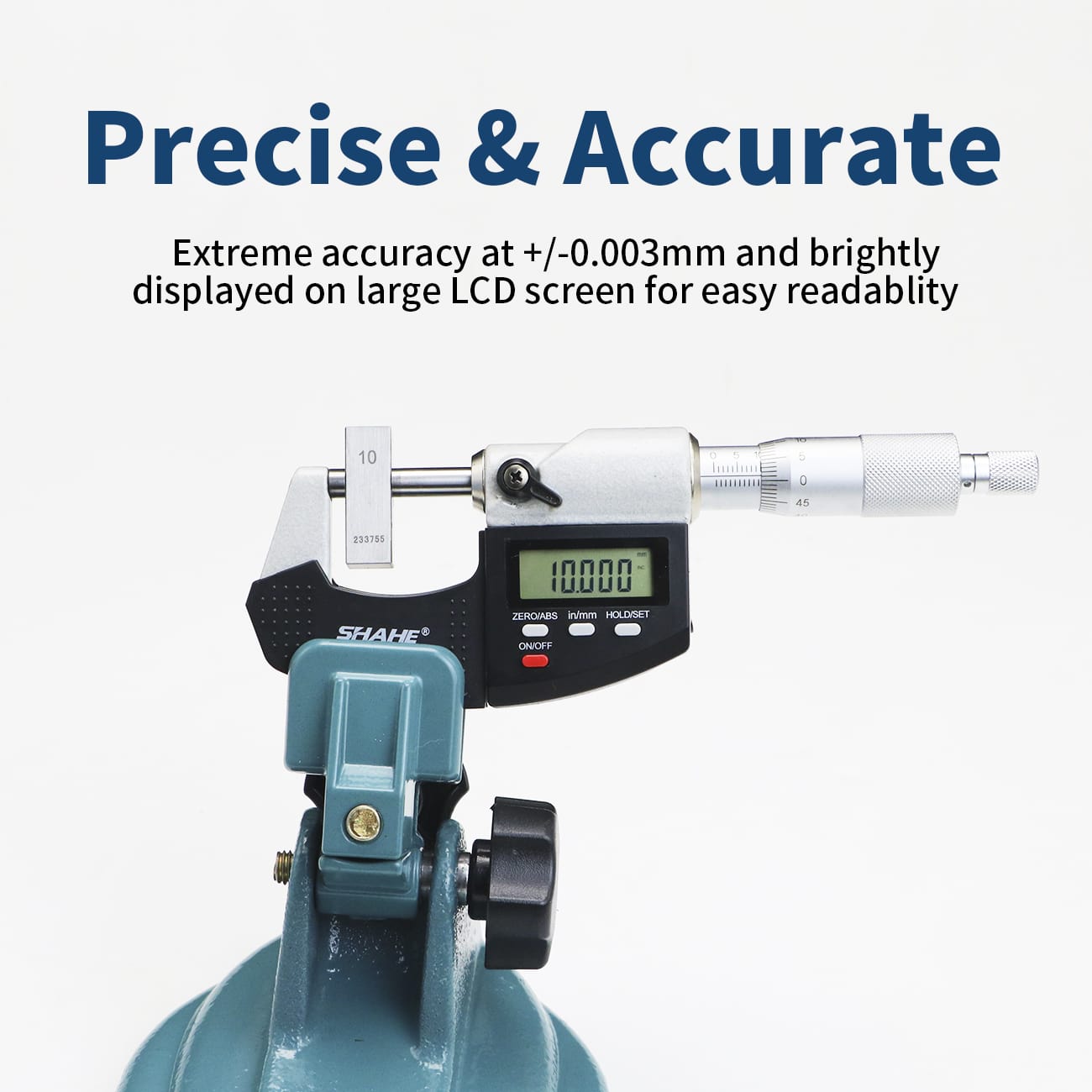

Accuracy:±0.003 mm

Battery: 3V CR2032 (Not included)

Measuring Force:5-10N

Power consumption :<=20uA

Storage temperature :-20-60°C

Operation temperature:0-40°C

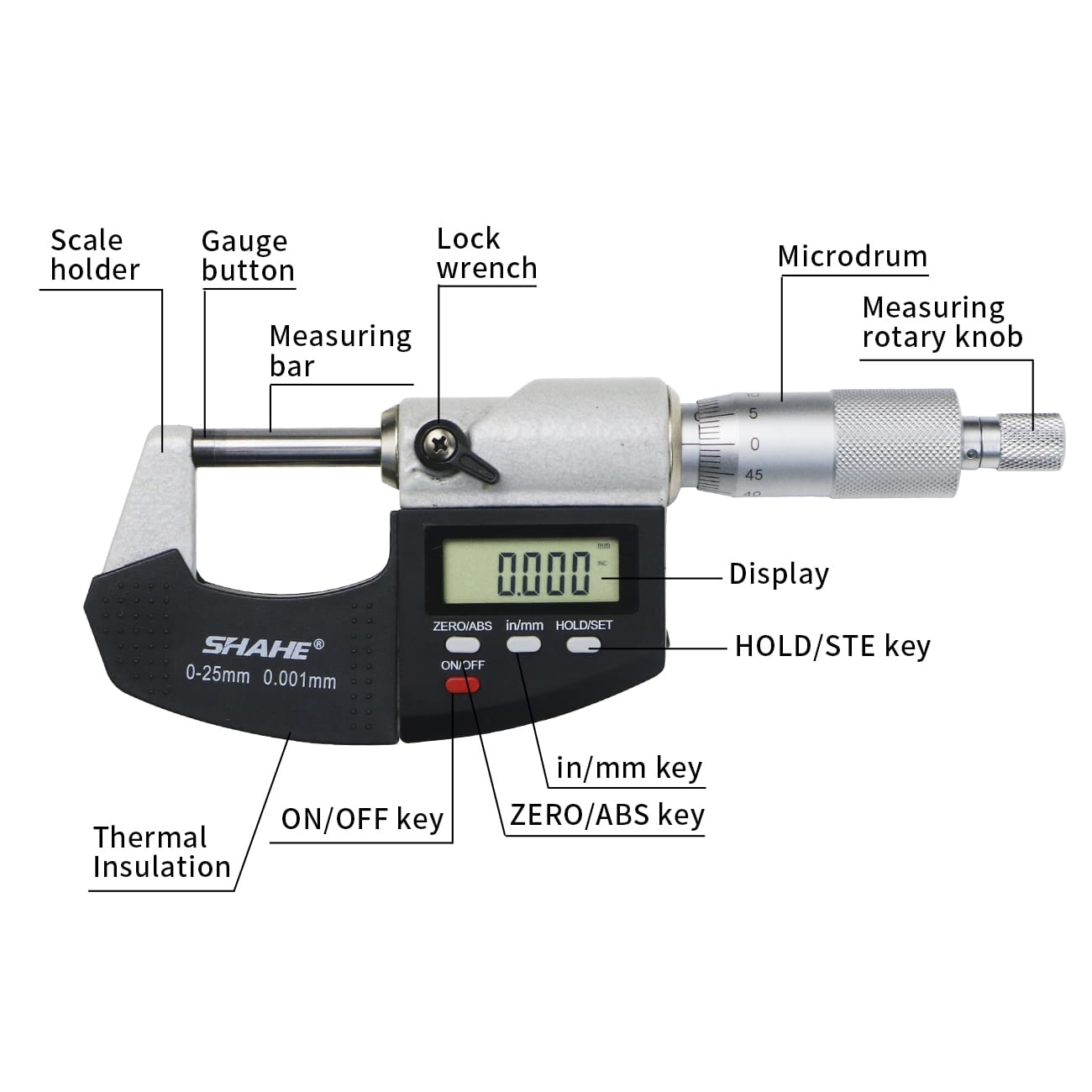

Key operation



ZERO/ABS: relative and absolute measurement conversion keys and reset key. Short press to show "INC" for relative and absolute measurementconversion. Long press to reset data.

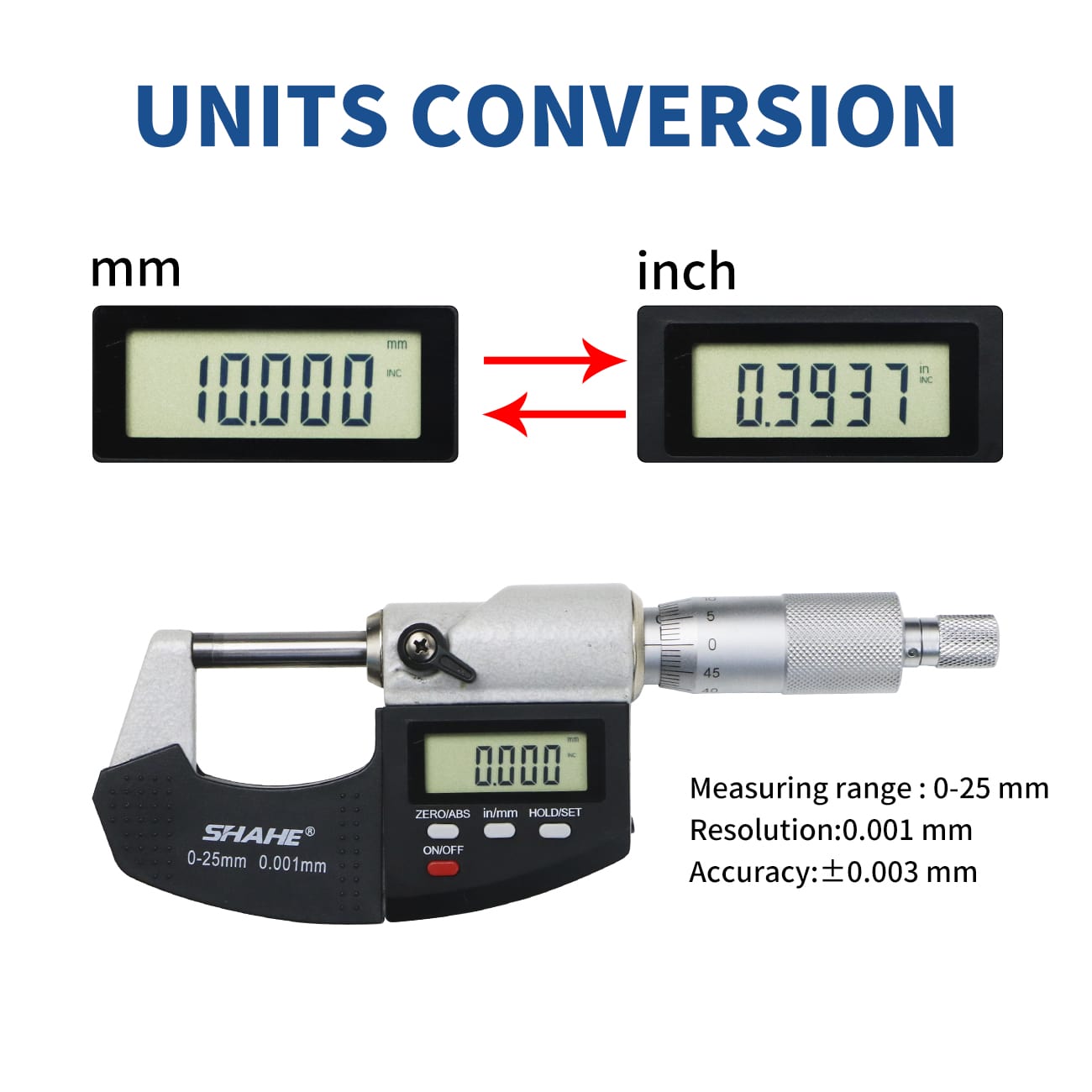

in / m m : metric and British conversion keys.

HOLD/SET: data retention and setting keys. Short press: the current measurement data remains locked. When in the zero position, long press to set zero position value to "0,25,50,75"; press and hold to let these values be displayed in turn; release the press when the required value is displayed, and this zero position value is the value currently displayed.

ON/OFF: power supply switch.
