GS-5321 0.2μm Digital indicator

Characteristic

1.Hardened alloy measuring head and stainless steel material

2.Compact and firm structure, convenient and stable operation

3.Quick display of the measured value on big LCD screen

4.Measurement for form and position tolerance, such as runout, straightness, parallelism, flatness etc

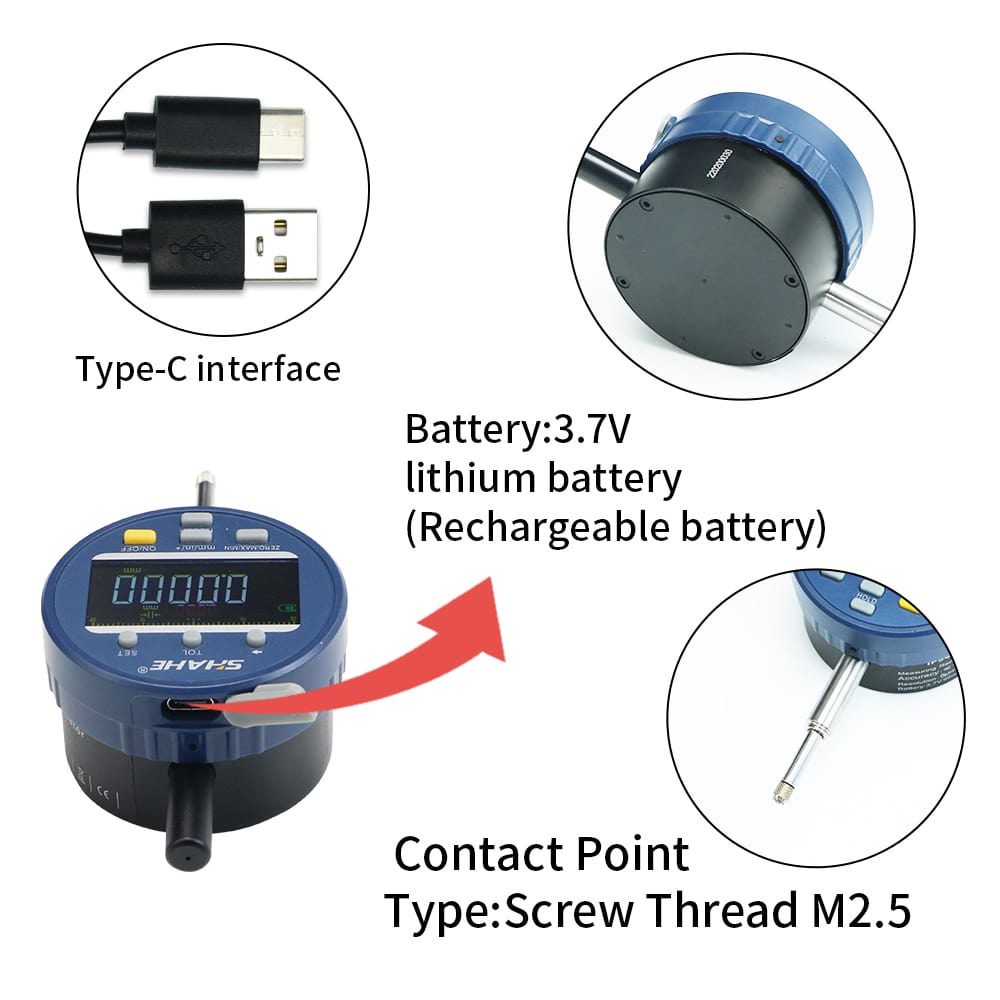

5. Rechargeable battery , 3.7V lithium battery ,Charging/communication interface:USB Type-C

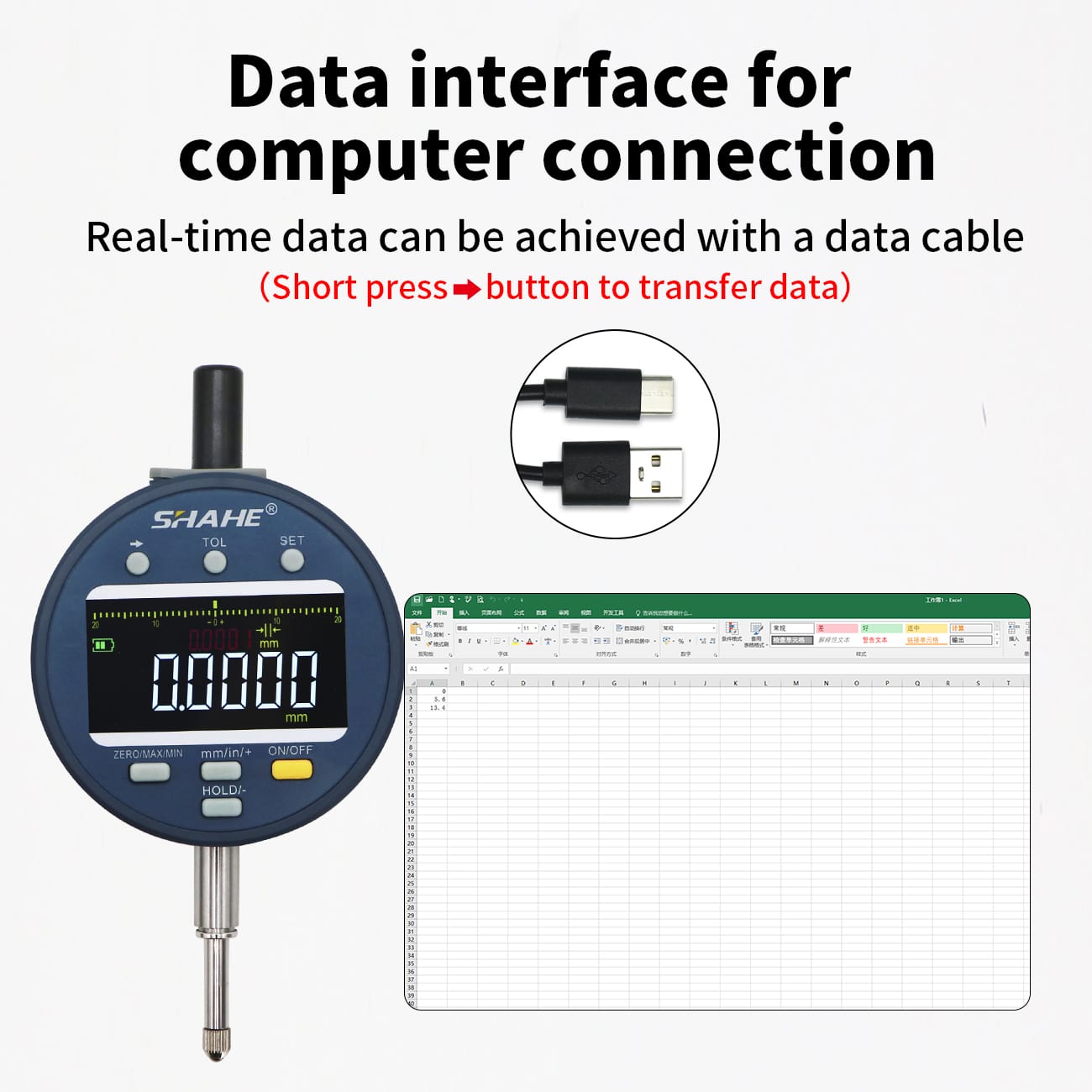

6. Data output ,Type-C interface ,  it is very simple and quick to transfer data.
GS-5321 ONLY can be data output to computer
GSL-5321 can be both data output to computer and mobile phone

7.Operating temperature :-10-40°C,Humidity:≤80% RH

8. Waterproof and dustproof:IP54/IP65 available

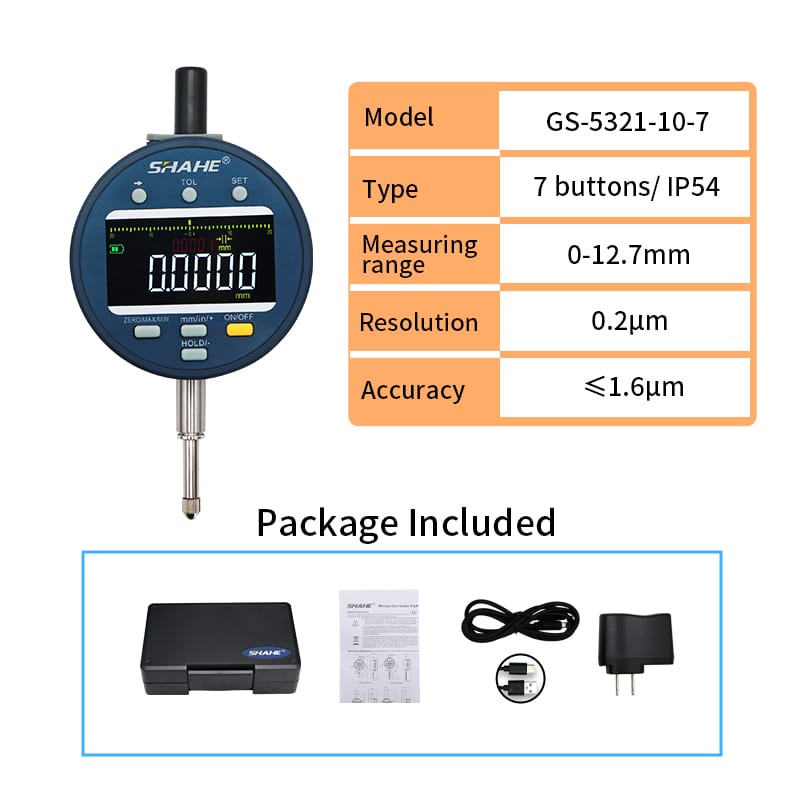

9.  Resolution:0.2μm
0-12.7mm Accuracy:≤1.6μm
0-25.4mm Accuracy:≤2μm

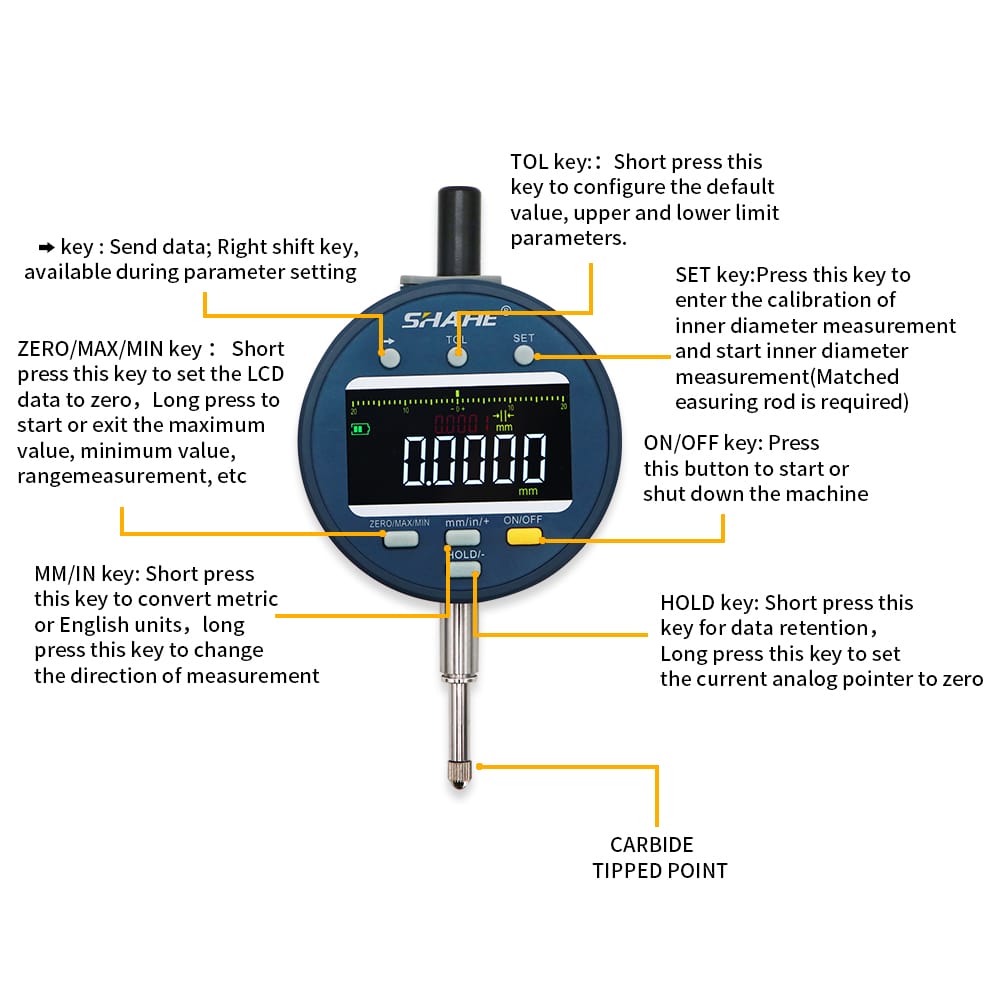

Function Introduction

1.Metric\Inch conversion function

2.Measurement direction conversion function

3.Data lock HOLD function

4.Data clear function

5.Analog pointer reset function

6.Maximum, minimum, range value measurement function

7.Upper and lower limit measurement function (tolerance measurement)

8.Inner diameter measurement function (need to be used with a measuring rod)
9.   Data output
10.S   upport setting the automatic shutdown time

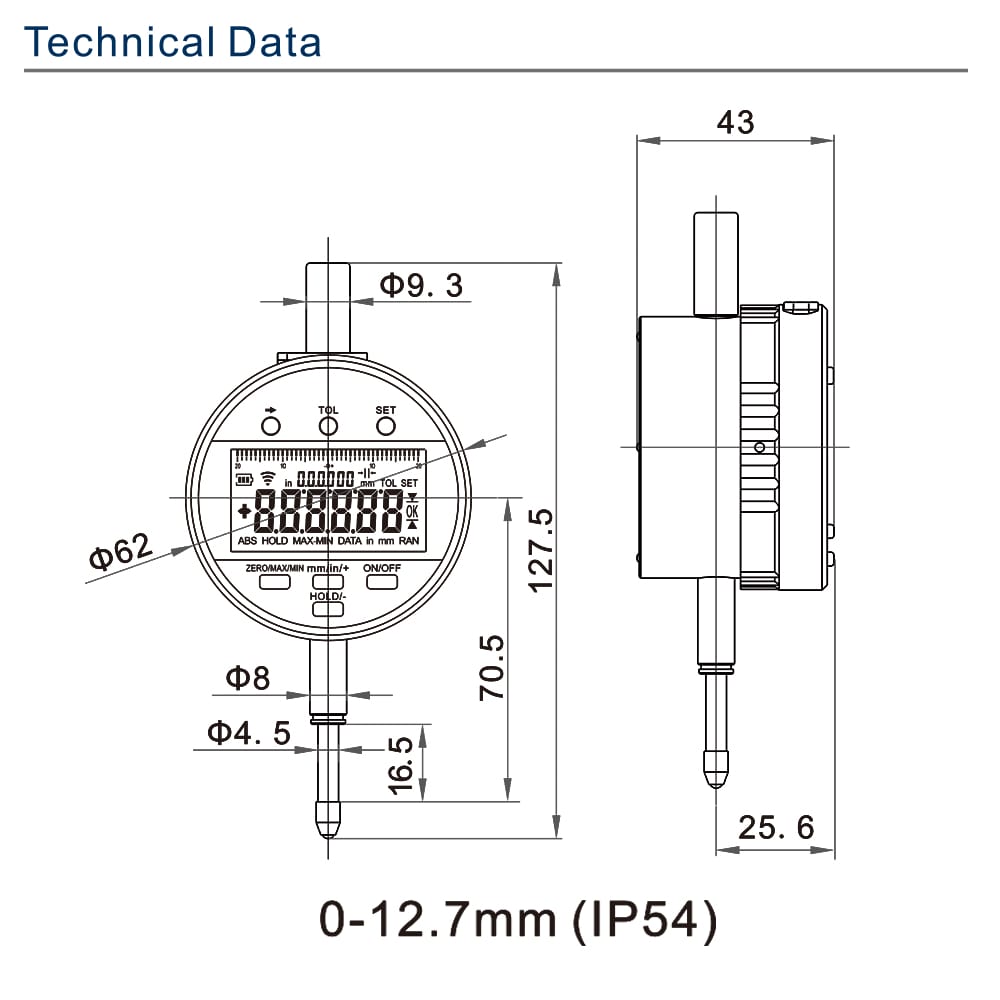

Product Size

0-12.7mm IP54
