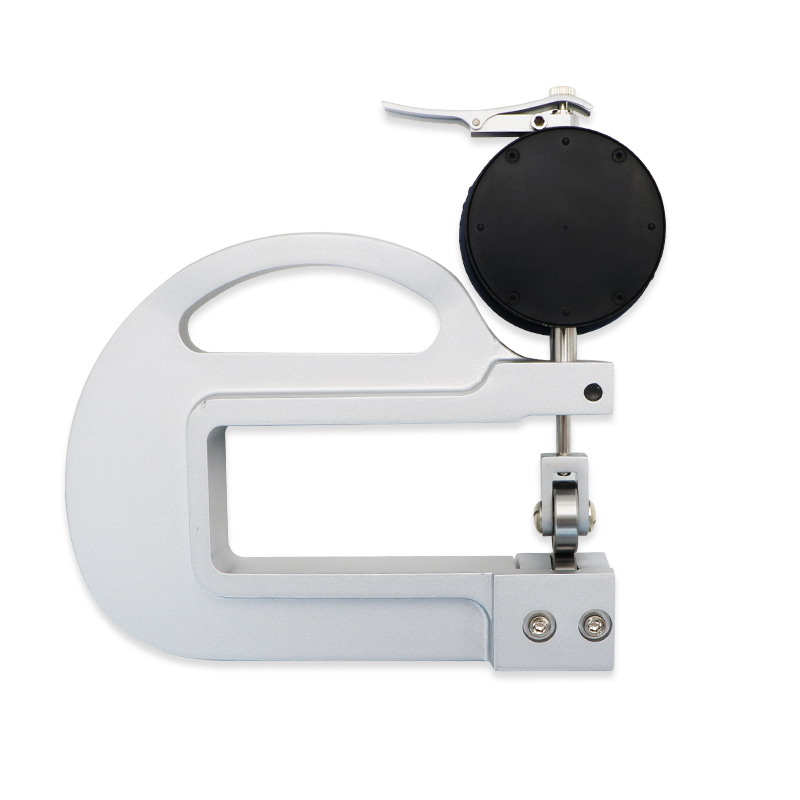

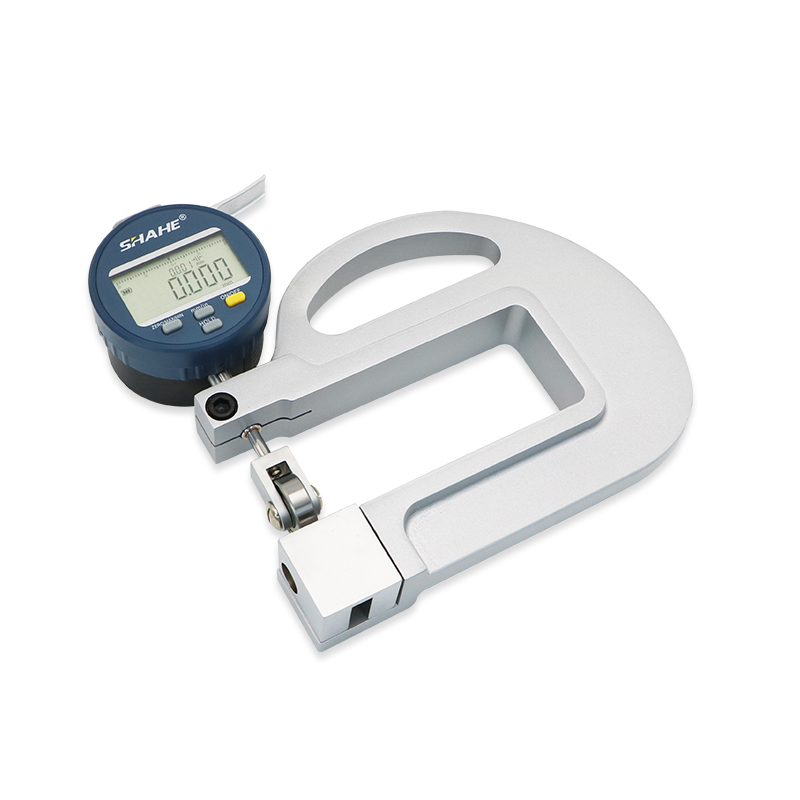

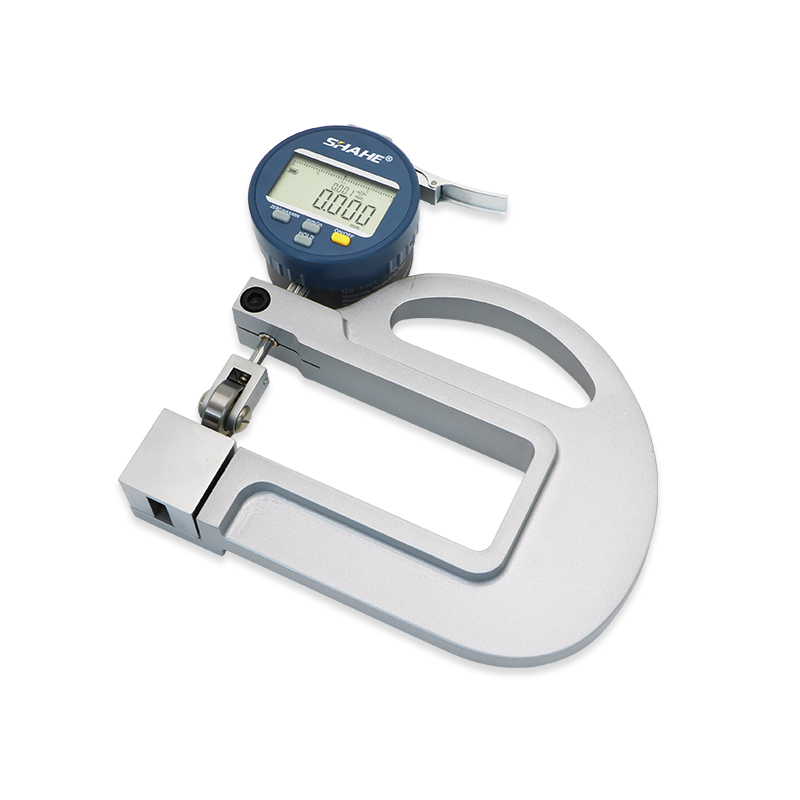

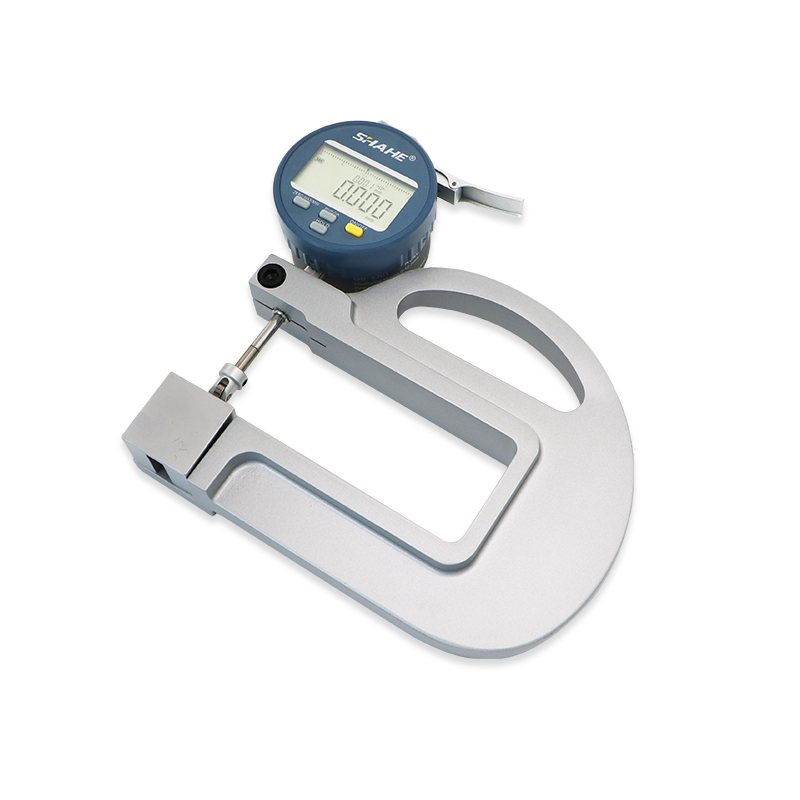

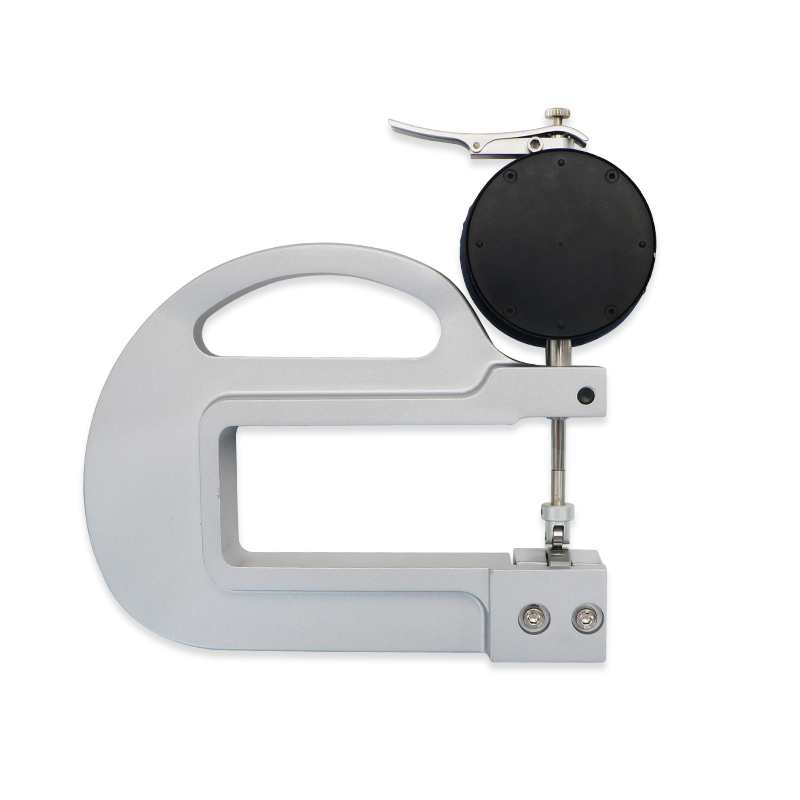

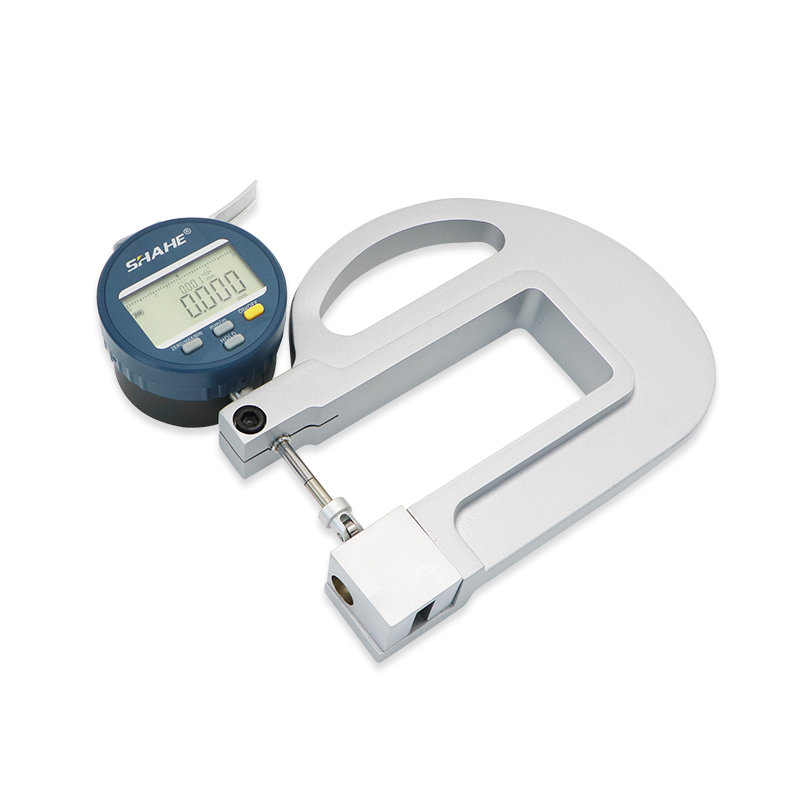

GS5335 0.001mm Digital thickness gauge with roller insert

Characteristic &Function

1.Buttons:on/off ,zero.mm/inch,data hold,max/min

2.Operating temperature :-10-40°C

3.Humidity:≤80% RH

4.Battery :3.7V lithium battery(Rechargeable battery),Charging /communication interface :USB Type-C

5.Directly measure the maximum,minimum value and range

6.Analog pointer

7.Absolute measurements

8.Data output

9.Measurement for the thickness of jewelry, leather, metal film, paper, rubber, fabric, and various metal panel, glass sheet etc

10.Two different measuring head (please check carefully before order )

Button Function(how to use)

①On/off key:Press this button to start or shut down the machine

②MM/IN key:short press to convert metric to inch units,long press to change the direction of measurements

③Hold key:short press for data retention,long press to set the current analog pointer to zero

④ZERO/MAX/MIN key:short press to set the LCD data to Zero ,long press to start or exit the maximum value ,mininum value ,range measurement etc.

Technical Parameters

Model:GS5335-10

Measuring range :0-10mm

Resolution:0.001mm

Accuracy:±0.009mm

Throat depth :104mm

Small head

Large head

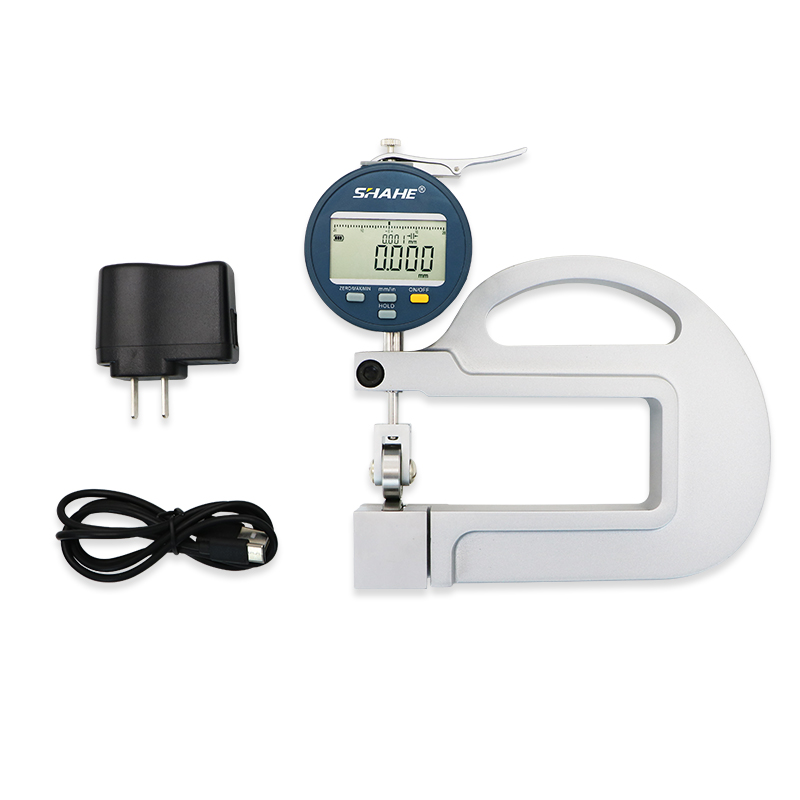

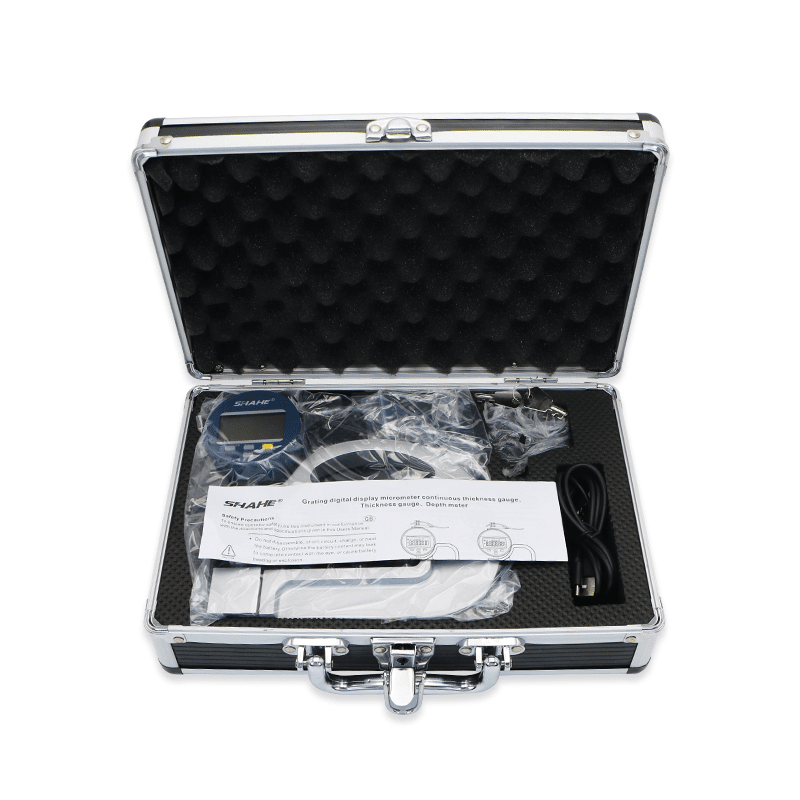

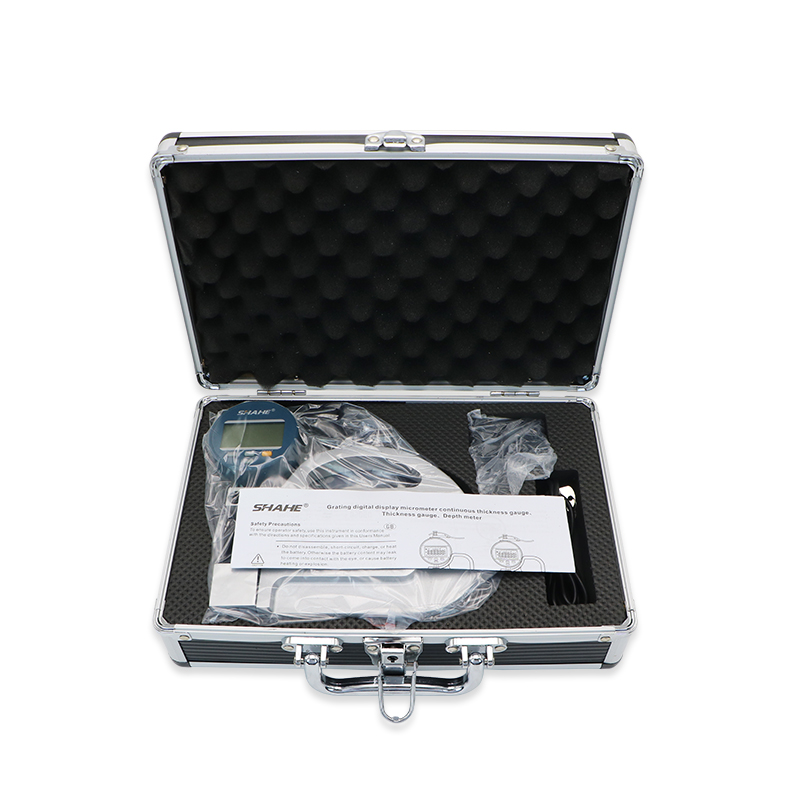

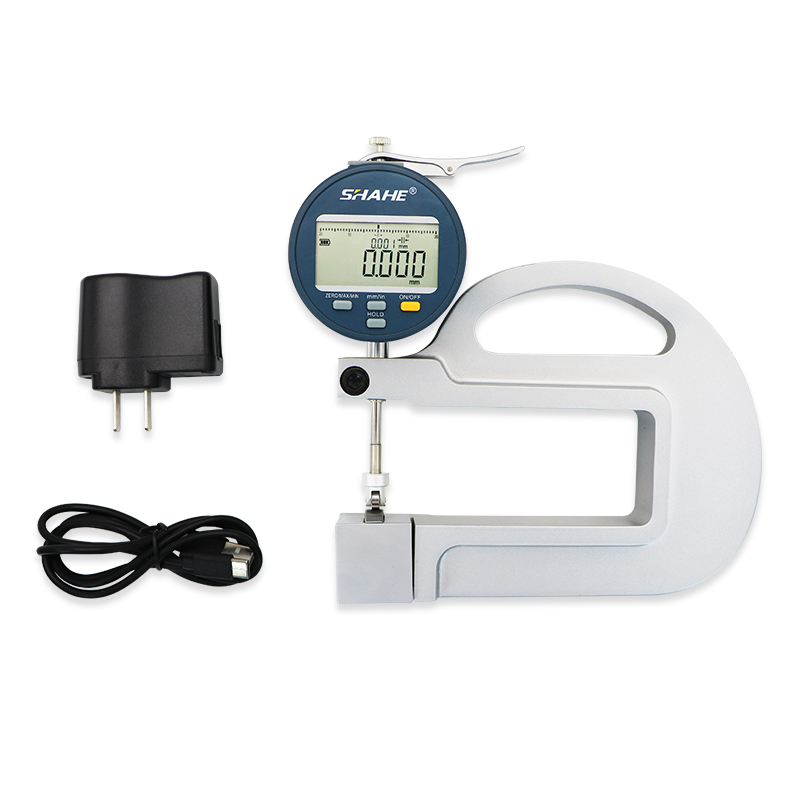

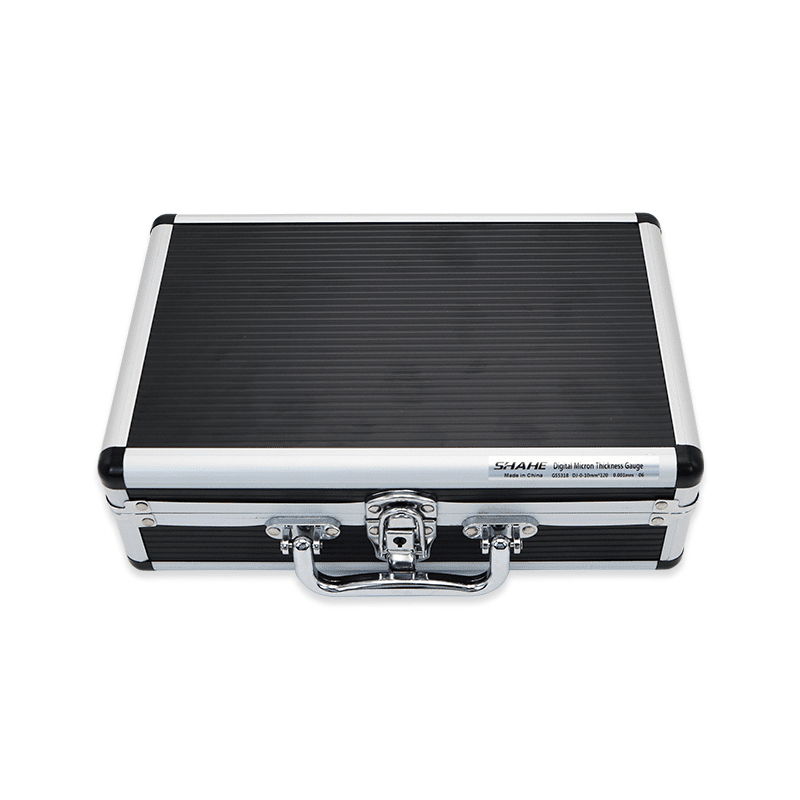

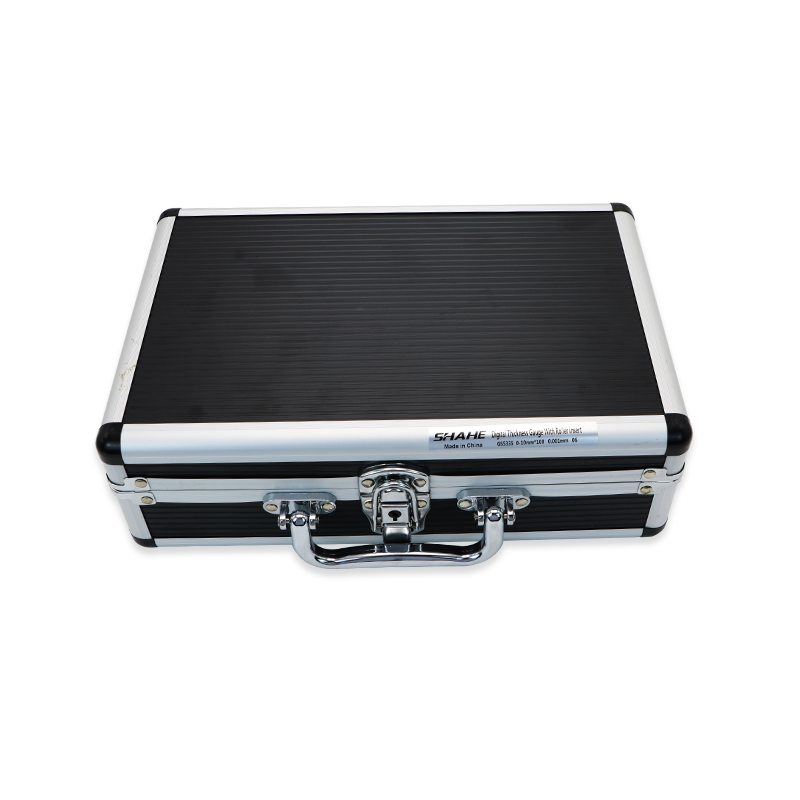

About package
