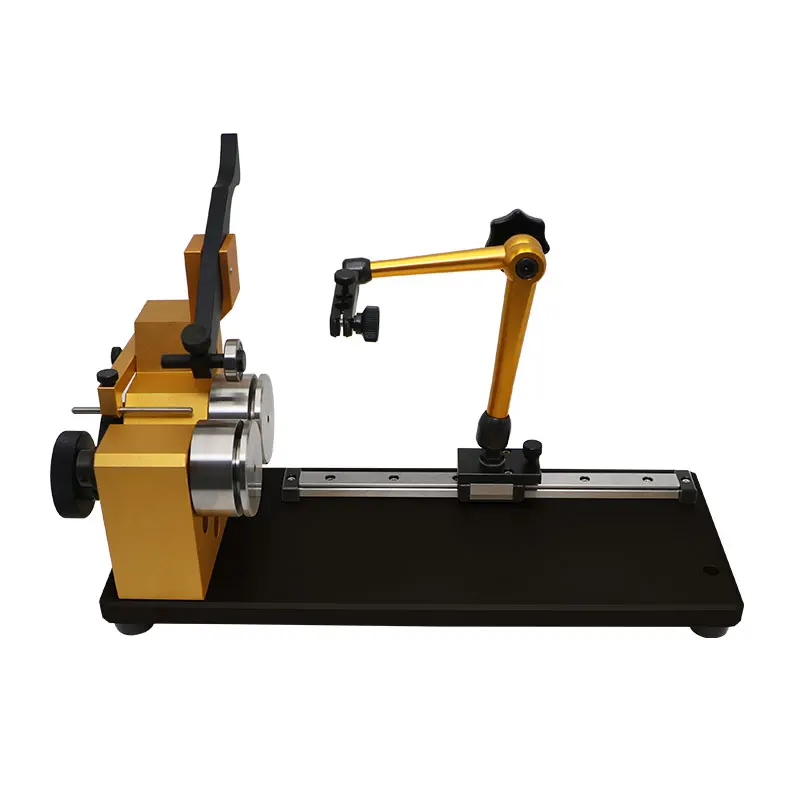

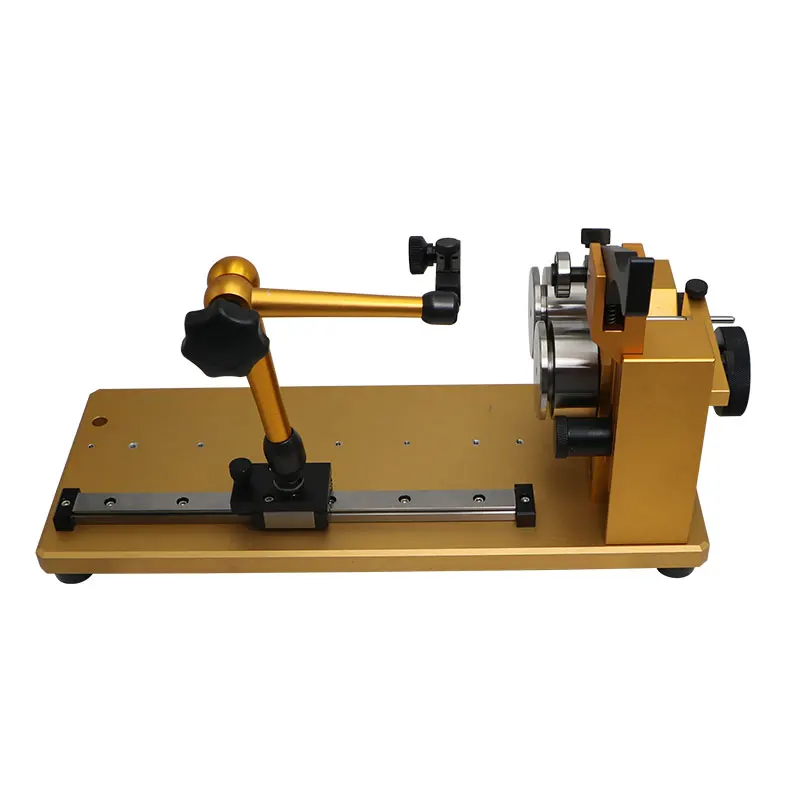

High accuracy concentricity tester WA-40/WA-40G
1.Precision measurement for the circularity, concentricity, circular runout of shaft workpiece 2.Precision measurement quickly for outer circle and inner circle of shaft workpiece simultaneously. 3.Precision measurement for muti-points in one shaft workpiece simultaneously. 4.Quick measuring for flush surface, inner circle and outer circle at the same time. 5.Standard accuracy 5um, and high accuracy 3um 6.Quick measuring, no need for re-tooling. 7.Convenient operation, wide range of application. 8.Easy to move, simple to maintain. 9.Demand for operating environment is common. 10.Custom made is available according to particularity of workpieces. 11.It is suitable for measurement of the rotational symmetric workpiece, such as step shaft, shaft sleeve, bushing block etc
Model number :WA-40 Indicator :Single indicator type Measuring diameter :20-102 mm Measuring length :203 mm Accuracy: 5um Model number :WA-40G Indicator :Single indicator type Measuring diameter :20-102 mm Measuring length :203 mm Accuracy: 3um
1)All indicator and test gauge needs to order separately. 2)If you have special shaft or parts to test with concentricity gage, pls send us your part drawing, we will recommend the instrument for you. Thanks!
